Magnets play a critical role in modern industries, from consumer electronics to electric vehicles and industrial automation. Among the most widely used permanent magnets, Ferrite Magnets and NdFeB Magnets (Neodymium Magnets) dominate the market.
Although both materials provide reliable magnetic performance, they differ greatly in magnetic strength, temperature resistance, machining capability, cost, and industrial applications.

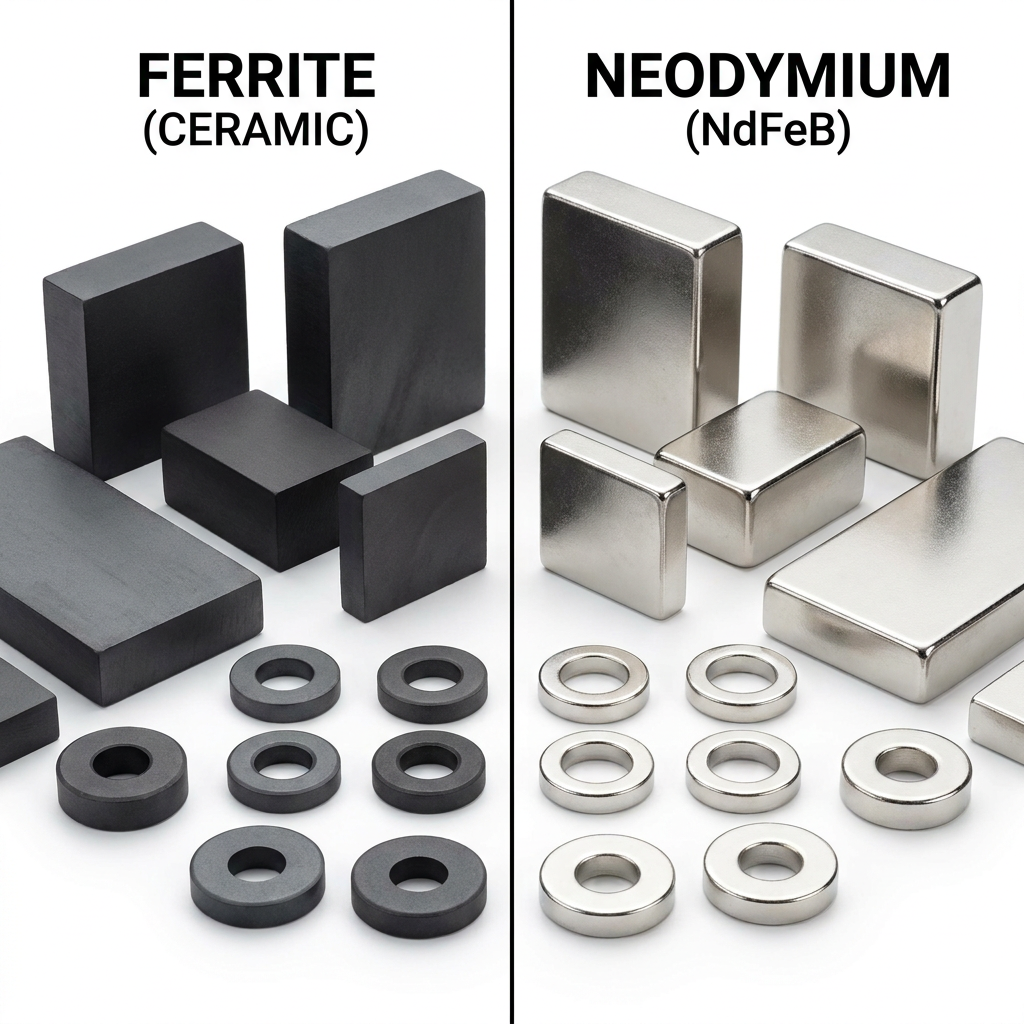

At Huajin Magnetics, we manufacture custom magnetic solutions for global OEM and ODM projects. This article explains the key differences between ferrite magnets and NdFeB magnets to help buyers and engineers choose the right material.
1. Magnetic Strength and Stability
Ferrite Magnets: Stable and Cost-Effective
Ferrite magnets deliver stable magnetic performance and excellent durability. Their magnetic field strength typically ranges from 0.2 to 0.4 Tesla, making them suitable for applications that do not require extremely high magnetic force.
Key advantages of ferrite magnets include:
- Good temperature resistance
- Excellent corrosion resistance
- Stable magnetic properties
- Low production cost
Ferrite magnets can operate at temperatures up to 250°C. They also resist rust naturally, even in humid or outdoor environments.
Because of these advantages, ferrite magnets remain popular in many household and industrial products.

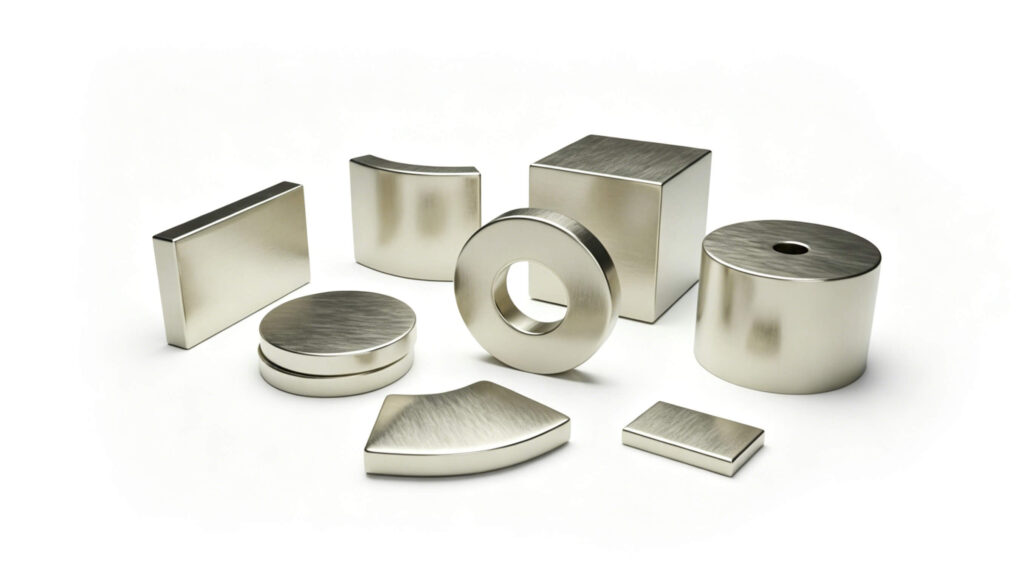

NdFeB Magnets: Ultra-Strong Magnetic Force
NdFeB magnets are the strongest permanent magnets available today. Their magnetic energy product can exceed 400 kJ/m³, far higher than ferrite magnets.
Compared with ferrite magnets, NdFeB magnets provide:
- 5–10 times stronger magnetic force
- Compact size with high holding power
- Excellent efficiency in miniaturized devices
- Strong magnetic performance in demanding systems
However, NdFeB magnets have lower temperature tolerance. Standard grades usually operate between 80°C and 200°C, depending on the material grade.
NdFeB magnets also require protective coatings such as nickel, zinc, or epoxy to prevent corrosion.
2. Cost and Machining Performance
Ferrite Magnets Offer Lower Material Costs
Ferrite magnets use iron oxide and ceramic materials, which are inexpensive and widely available. In many cases, ferrite magnet raw material costs are only a fraction of NdFeB magnet costs.
For large-volume, low-cost products, ferrite magnets provide strong economic advantages.
NdFeB Magnets Support Compact Designs
Although NdFeB magnets cost more, their superior magnetic strength allows manufacturers to reduce magnet size and product weight.
This advantage often lowers overall system costs in:
- Electric motors
- Consumer electronics
- Medical equipment
- Precision automation systems
Machining Differences
Ferrite magnets are easier to process and can support drilling, cutting, and shaping in many applications.
NdFeB magnets are harder and more brittle. Manufacturers usually process them using diamond tools and precision grinding equipment.
Proper handling is essential because NdFeB magnets can chip during machining.
3. Corrosion Resistance and Durability
Ferrite Magnets Resist Corrosion Naturally
Ferrite magnets perform well in wet or outdoor environments because they resist oxidation without additional coatings.
This makes them suitable for:
- Outdoor equipment
- Household products
- Humid industrial environments
NdFeB Magnets Need Surface Protection
NdFeB magnets can oxidize quickly when exposed to moisture. Manufacturers usually apply protective coatings to improve durability.
Common coating options include:
- Nickel coating
- Epoxy coating
- Zinc coating
- Gold coating
At Huajin Magnetics, we provide customized coating solutions based on application requirements.
4. Typical Industrial Applications
Common Applications of Ferrite Magnets
Ferrite magnets are widely used in products that require stable performance and cost efficiency.
Typical applications include:
- Microwave oven door seals
- Loudspeaker magnetic rings
- Toys and educational products
- Household appliances
- Magnetic holders
Their corrosion resistance and affordability make them ideal for high-volume consumer markets.
Common Applications of NdFeB Magnets
NdFeB magnets dominate high-performance industrial applications because of their exceptional magnetic strength.
Key applications include:
- Electric vehicle motors
- MRI equipment
- Smartphone vibration motors
- Wind turbine generators
- Robotics and automation systems
- Industrial magnetic assemblies
Their compact size and strong magnetic force support advanced engineering designs.
5. Which Magnet Should You Choose?
Choosing between ferrite magnets and NdFeB magnets depends on your technical requirements and budget.
Choose Ferrite Magnets If You Need:
- Lower material cost
- High temperature resistance
- Strong corrosion resistance
- General-purpose magnetic performance
Choose NdFeB Magnets If You Need:
- Maximum magnetic strength
- Compact product design
- High-efficiency motors
- Advanced industrial performance
For modern industries such as EV motors, renewable energy, robotics, and precision electronics, NdFeB magnets remain the preferred solution.
Why Choose Huajin Magnetics?
At Huajin Magnetics, we specialize in customized magnetic solutions for industrial applications worldwide.
We provide:
- NdFeB magnets
- Ferrite magnets
- Magnetic assemblies
- OEM & ODM support
- Precision manufacturing
- Stable global supply
Our engineering team helps customers select the right magnetic material based on performance, operating environment, and budget.
Conclusion
Ferrite magnets and NdFeB magnets each offer unique advantages.
Ferrite magnets provide affordability, corrosion resistance, and reliable performance for general applications. NdFeB magnets deliver unmatched magnetic strength and compact efficiency for advanced industrial systems.
Understanding the differences between these two magnetic materials helps manufacturers improve product performance and optimize production costs.
